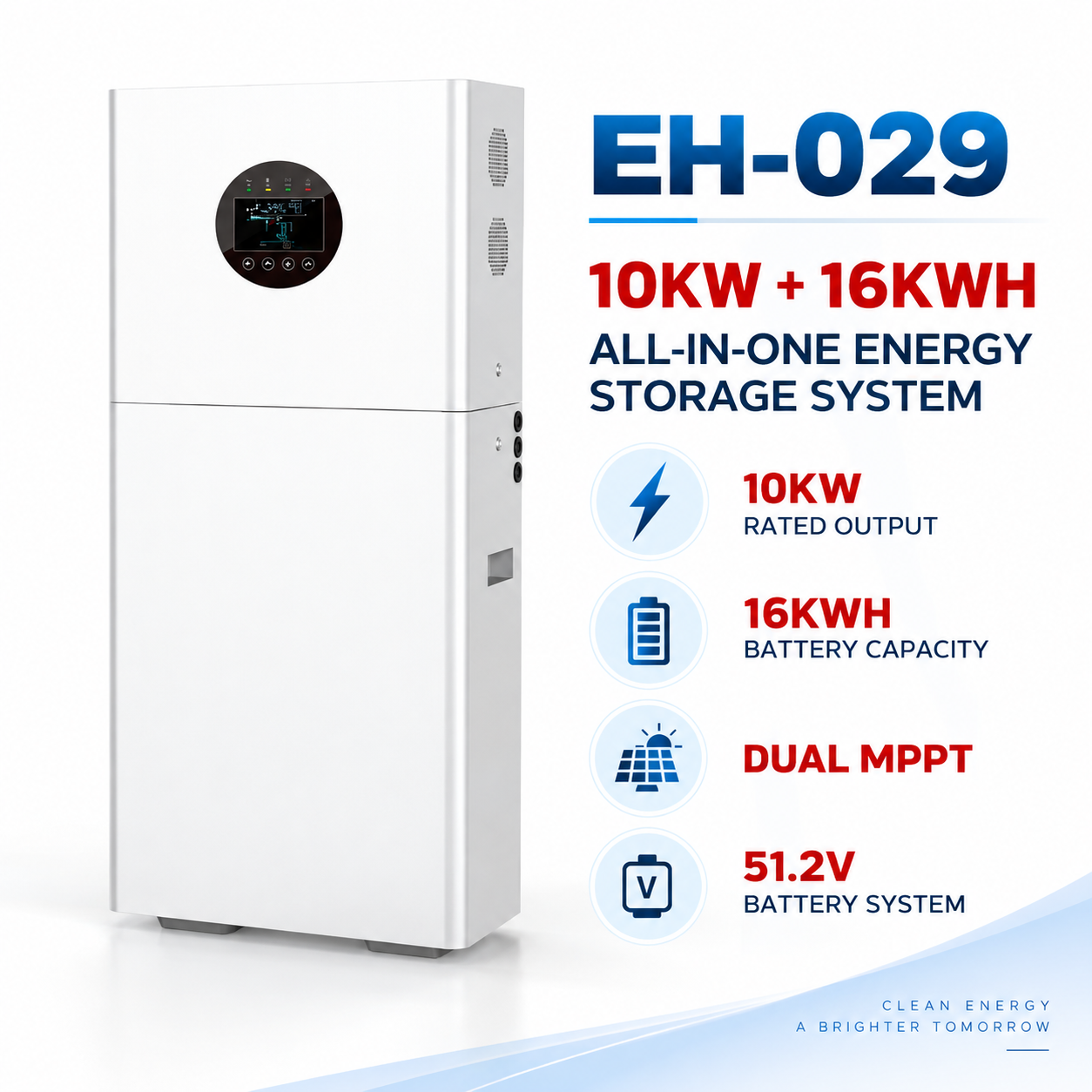

10KW 16KWH All-in-One Solar Inverter and LiFePO4 Battery Energy Storage System EH-029
The EH-029 10KW+16KWH All-in-One Energy Storage System integrates a 10kW inverter with a 16kWh battery into one compact unit. Designed for residential solar energy storage and distributed energy applications, it combines solar charging, battery storage, and AC power conversion in a space-saving cabinet.
Equipped with dual MPPT solar charging, the system supports two PV input channels with a maximum input power of 6kW per channel. Its 51.2V battery system provides 16kWh rated energy and 14.4kWh usable energy at 90% depth of discharge (DOD).

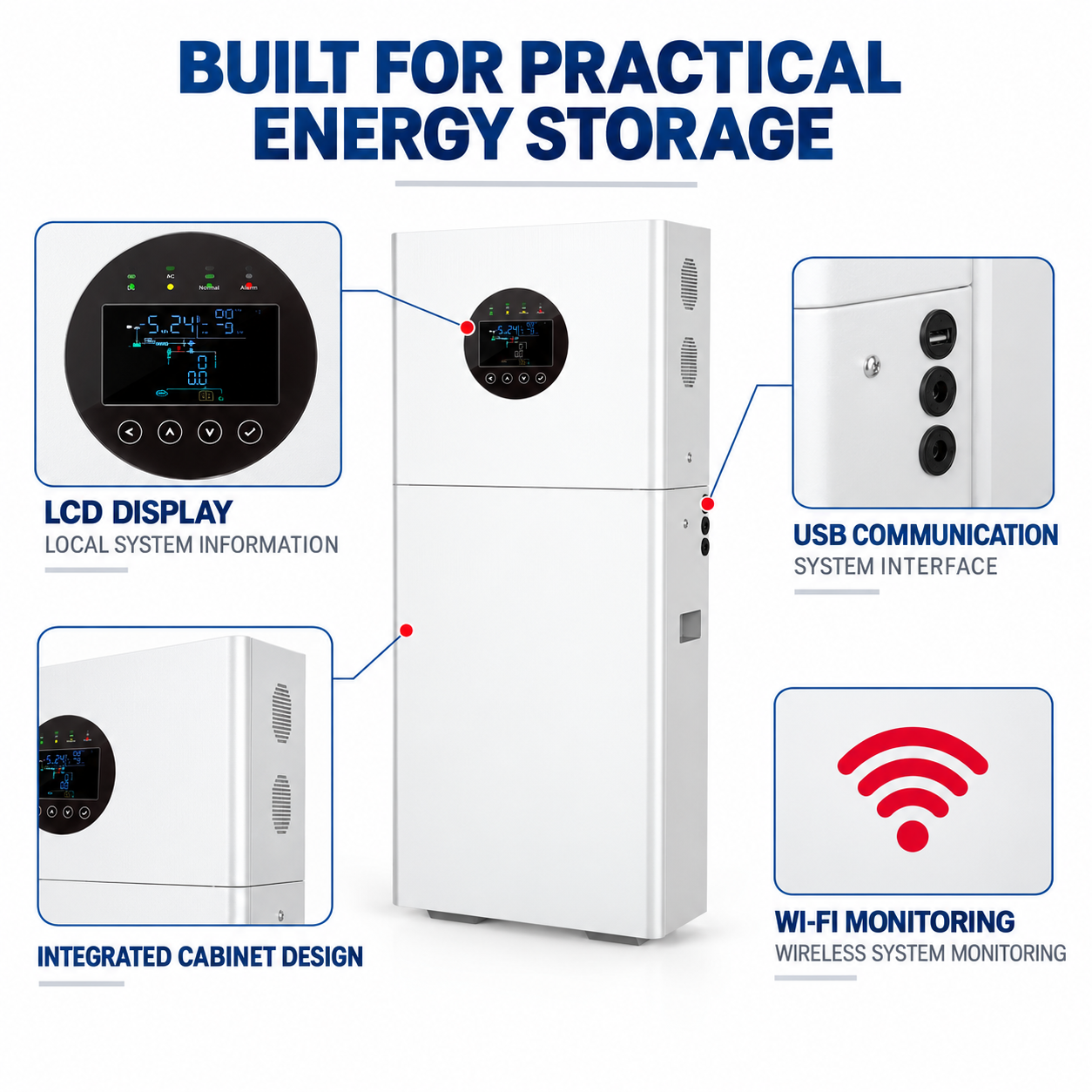

With 220V, 230V, and 240V AC output options, a pure sine wave output, and built-in Wi-Fi monitoring, the EH-029 offers an integrated solution for solar energy utilization and battery-based power supply. The LCD display provides local system information, while USB and Wi-Fi interfaces support monitoring and communication.

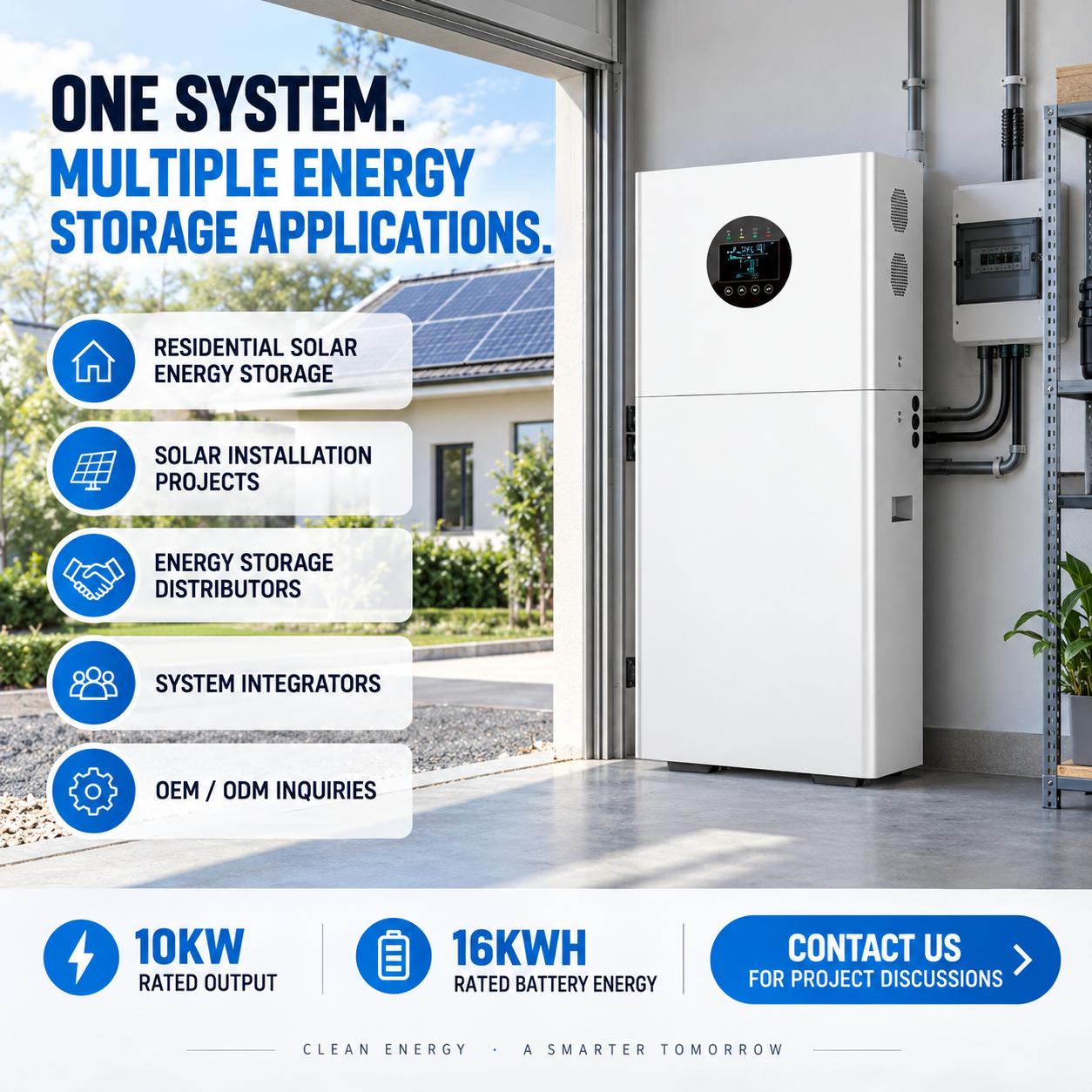

For solar installers, energy storage distributors, system integrators, and OEM/ODM buyers, the EH-029 provides a consolidated platform for residential energy storage projects and customized energy solutions.
| Parameter | Specification |
|---|---|
| Model | EH-029 ESS 10KW+16KWH |
| Product Type | All-in-One Solar Inverter and Battery Energy Storage System |
| Rated Output Power | 10,000W |
| Surge Power | 20,000VA |
| Rated Battery Energy | 16kWh |
| Usable Energy | 14.4kWh at 90% DOD |
| Nominal Battery Voltage | 51.2VDC |
| Maximum Charge Current | 200A |
| Maximum Discharge Current | 200A |
| AC Input Rated Voltage | 220V / 230V / 240V, L+N+PE |
| AC Input Voltage Range | 90–280V ±3V (Normal Mode); 170–280V ±3V (UPS Mode) |
| AC Input Frequency | 50Hz / 60Hz, auto detection |
| AC Output Voltage | 220V / 230V / 240V |
| AC Output Frequency | 50Hz / 60Hz ±0.1% |
| Power Factor | 1 |
| Output Waveform | Pure Sine Wave |
| Switch Time | 10ms |
| Maximum Efficiency (Battery Mode) | 94% at 48VDC |
| Solar Charger Type | Dual MPPT |
| Maximum PV Input Current | 22A + 22A |
| Maximum PV Input Power | 6kW + 6kW |
| PV Operating Voltage Range | 80–450VDC |
| Maximum PV Open Circuit Voltage | 500VDC |
| Maximum PV Charge Current | 160A |
| Maximum AC Charge Current | 160A |
| Maximum Combined PV + AC Charge Current | 160A |
| Display | LCD |
| Communication | USB |
| Monitoring | Wi-Fi |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C to +50°C |
| Relative Humidity | 5%–95%, non-condensing |
| Storage Temperature | -15°C to +60°C |
| Maximum Operating Altitude | 4,000m, derating above 1,000m |
| Product Dimensions | 550 × 245 × 1180mm |
| Package Dimensions | 630 × 420 × 1264mm |
Note: Confirm the final battery chemistry, certifications, warranty, cycle life, grid-connected operating modes, and OEM/ODM customization options with the manufacturer before publishing claims about these items.
Related Products
Related Blogs
-
10kW Rated Output Power – Supports residential and small-scale energy storage applications.
-
16kWh Rated Battery Capacity – Provides substantial energy storage for daily solar energy use.
-
14.4kWh Usable Energy – Specified usable capacity at 90% depth of discharge.
-
All-in-One System Design – Combines inverter and battery storage in one integrated cabinet.
-
Dual MPPT Solar Charging – Supports two PV channels for solar energy harvesting.
-
Up to 12kW Total PV Input Power – 6kW maximum input power per MPPT channel, subject to system configuration.
-
51.2V Battery System – Designed around a 51.2V DC nominal battery voltage.
-
200A Maximum Charge and Discharge Current – Supports high-current battery operation within specified operating limits.
-
Pure Sine Wave AC Output – Provides a pure sine wave output waveform.
-
Wi-Fi Monitoring and LCD Display – Enables local display and wireless system monitoring.
-
Multiple AC Voltage Options – Supports 220V, 230V, and 240V AC output.
-
Compact Cabinet Design – Measures 550 × 245 × 1180mm for space-conscious installations.
