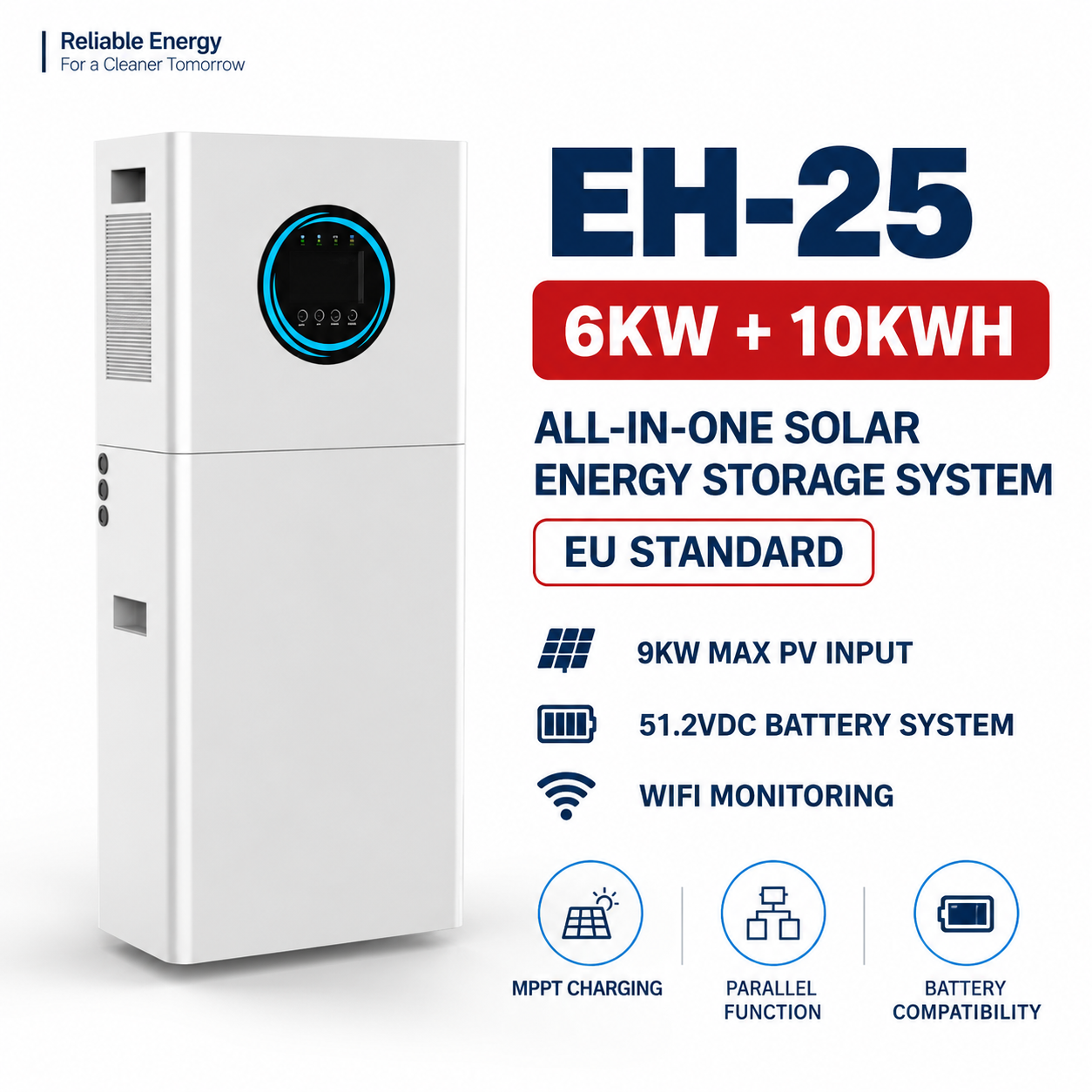

6KW 10KWh All‑in‑One ESS Off‑Grid Energy Storage System EH-025

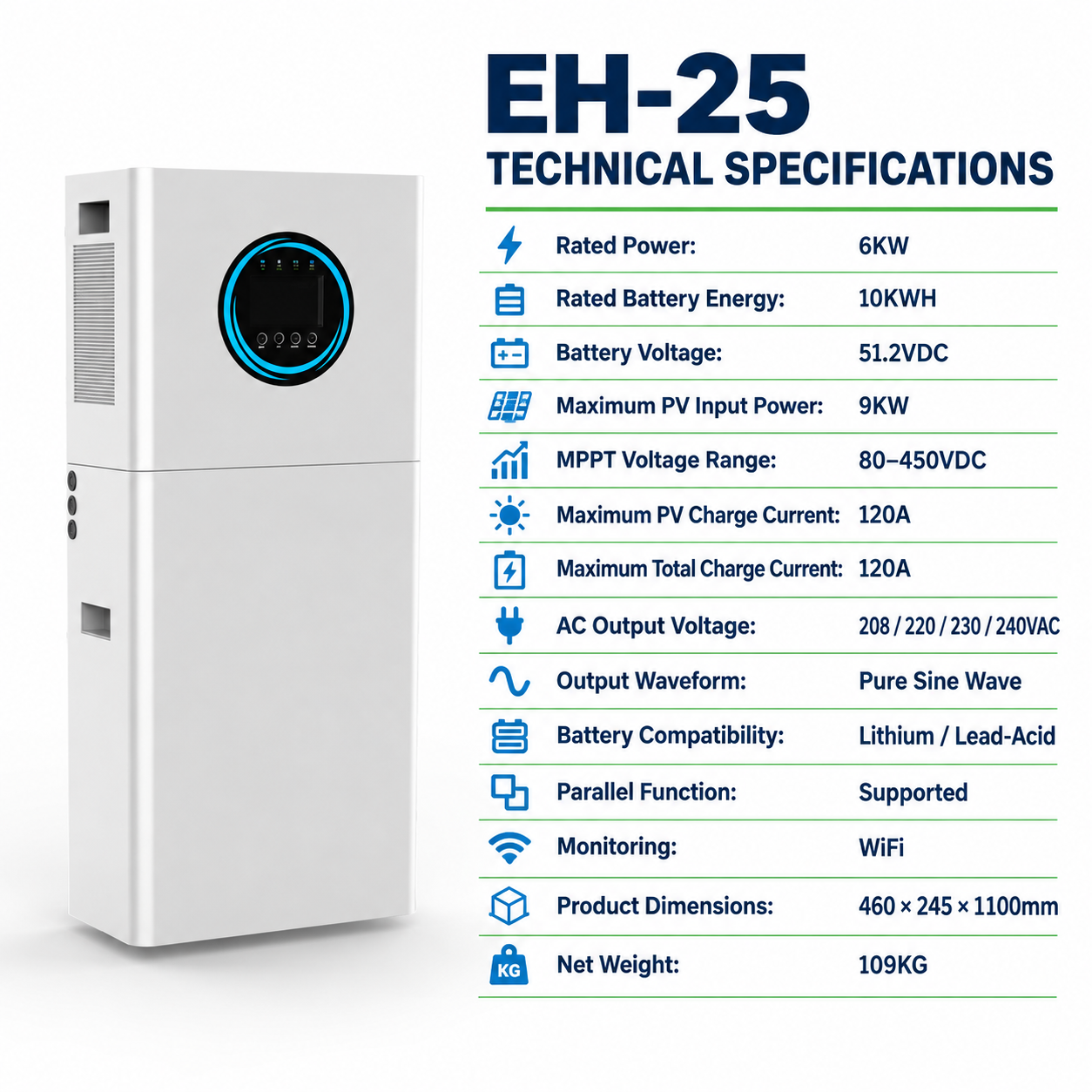

| Item | ESS 6KW+10KWH EU Standard |
|---|---|
| Rated Power | 6KW |
| AC Output Voltage | 208 / 220 / 230 / 240 VAC |
| Waveform | Pure Sine Wave |
| Max PV Input Power | 9KW |
| MPPT Voltage Range | 80‑450 VDC |
| Max PV Charge Current | 120A |
| Max Total Charge Current(PV+AC) | 120A |
| Battery Nominal Voltage | 51.2VDC |
| Rated Energy | 10KWh |
| Battery Operating Voltage | 40.0‑58.4 VDC |
| Battery Compatibility | Lithium / Lead‑acid battery |
| Parallel Function | Supported |
| Monitoring | WiFi Monitoring |
| Operating Temperature | ‑15℃ ~ 60℃ |
| Relative Humidity | 5%‑95% Non‑condensing |

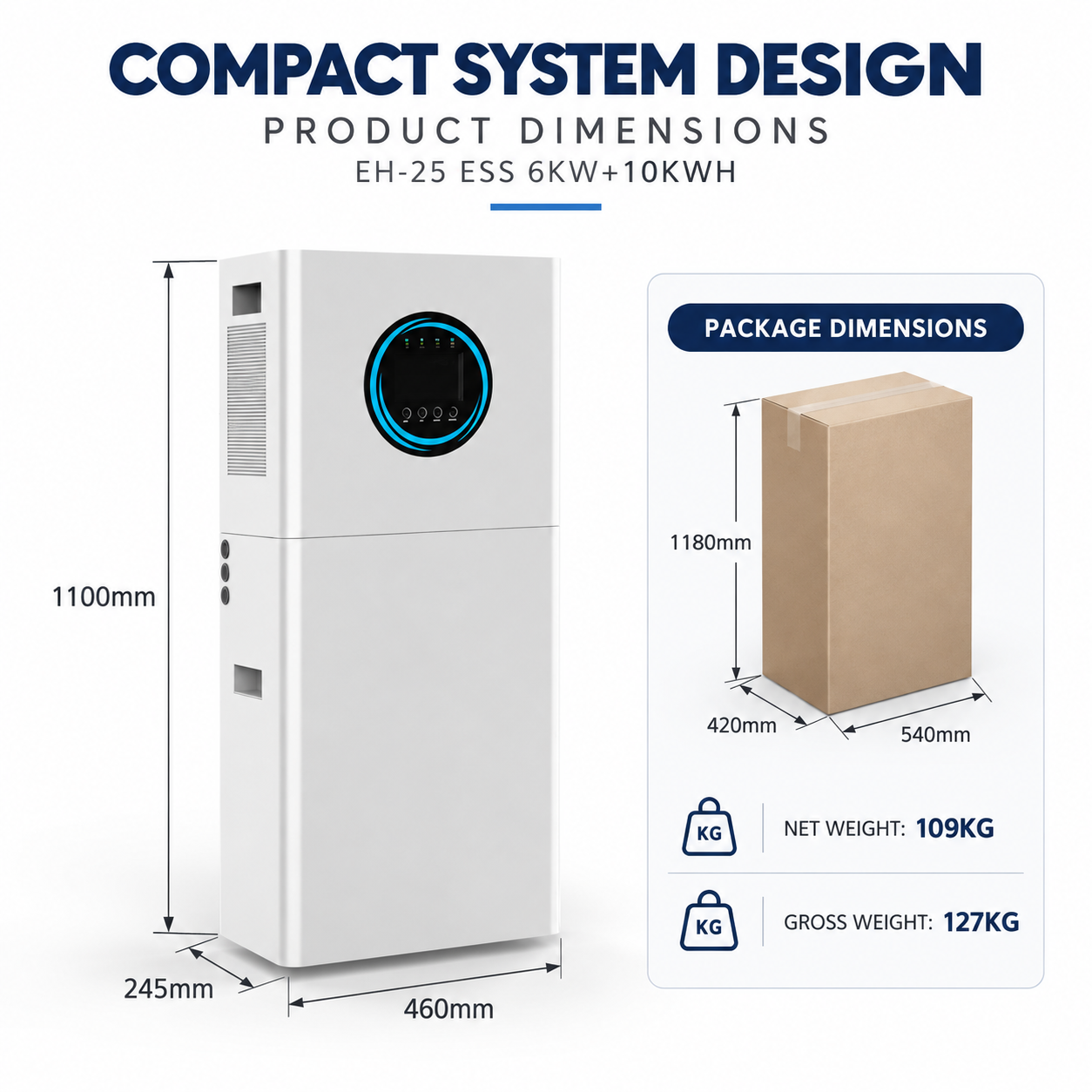

| Product Size | 460 × 245 × 1100 mm |
| Package Size | 540 × 420 × 1180 mm |
| Net Weight | 109 KG |
| Gross Weight | 127 KG |
Related Products
Related Blogs

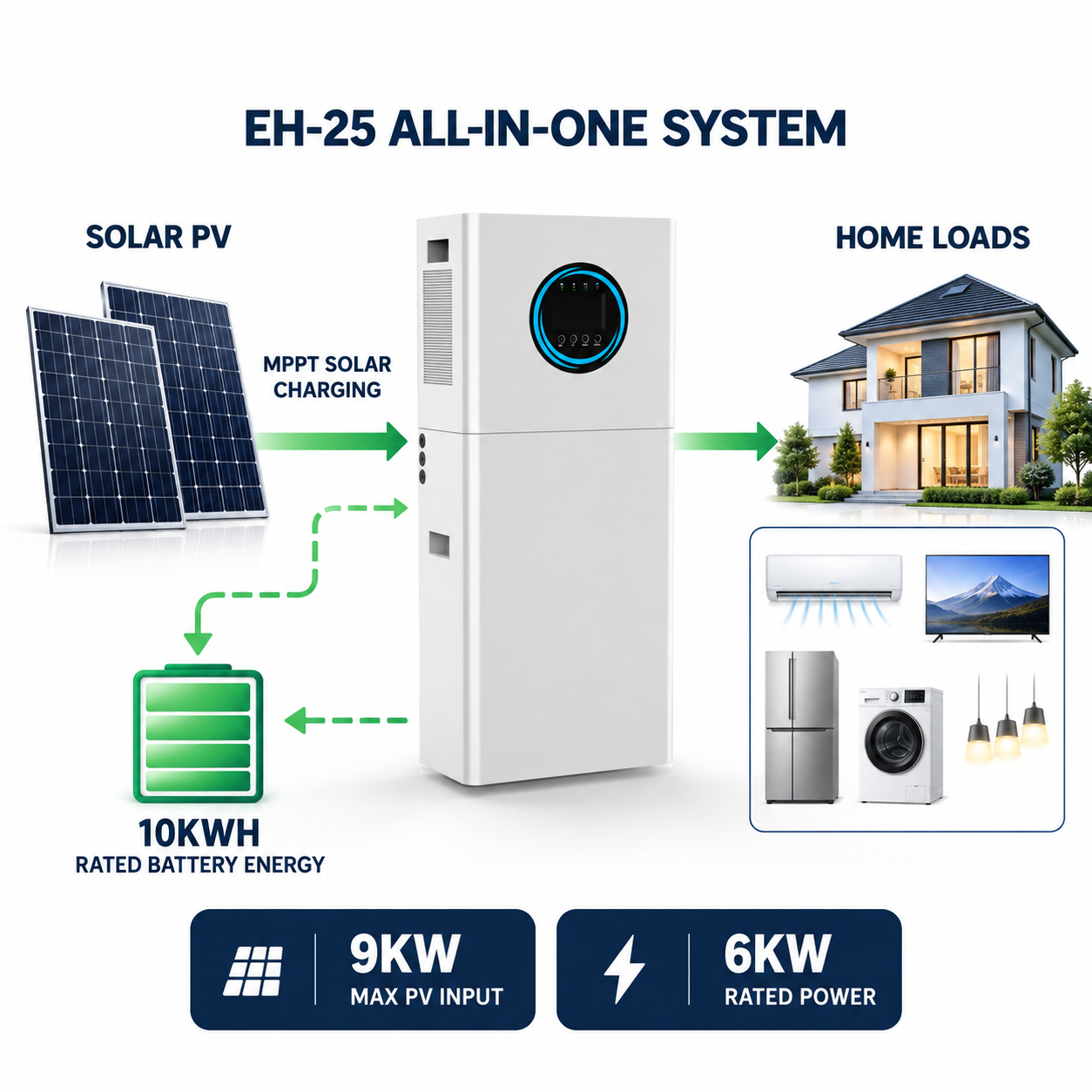

‑ 6KW rated output power, max 9KW PV solar input, wide MPPT 80‑450VDC range
‑ Pure sine wave output, safe for all kinds of household electrical devices

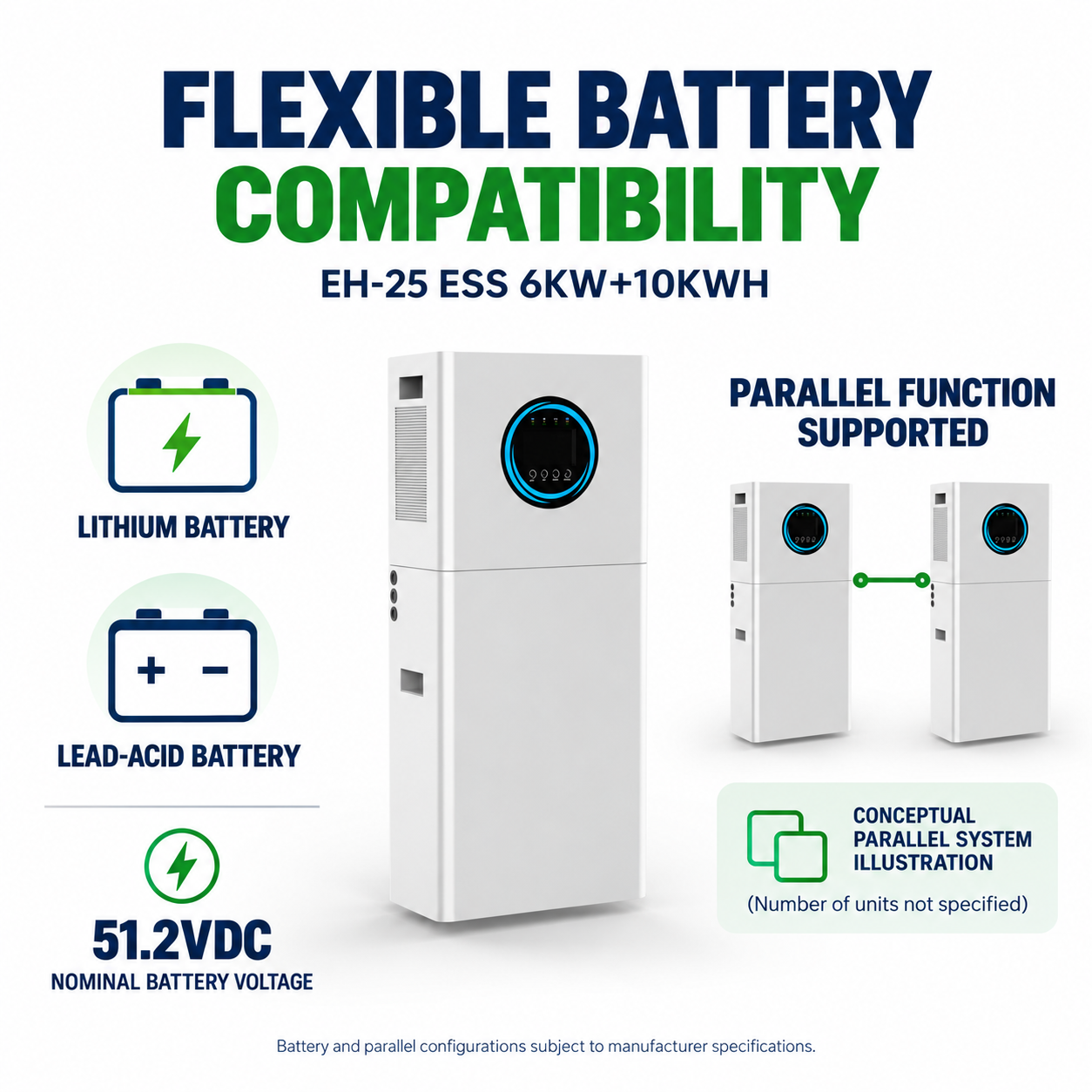

‑ Dual‑battery compatible: support lithium battery and lead‑acid battery
‑ Support parallel connection, expand power and capacity freely
‑ Built‑in WiFi module, realize remote real‑time monitoring via mobile APP
‑ Wide working temperature ‑15℃~60℃, adapt to diverse installation environments
‑ EU standard 208‑240VAC output for European residential use
