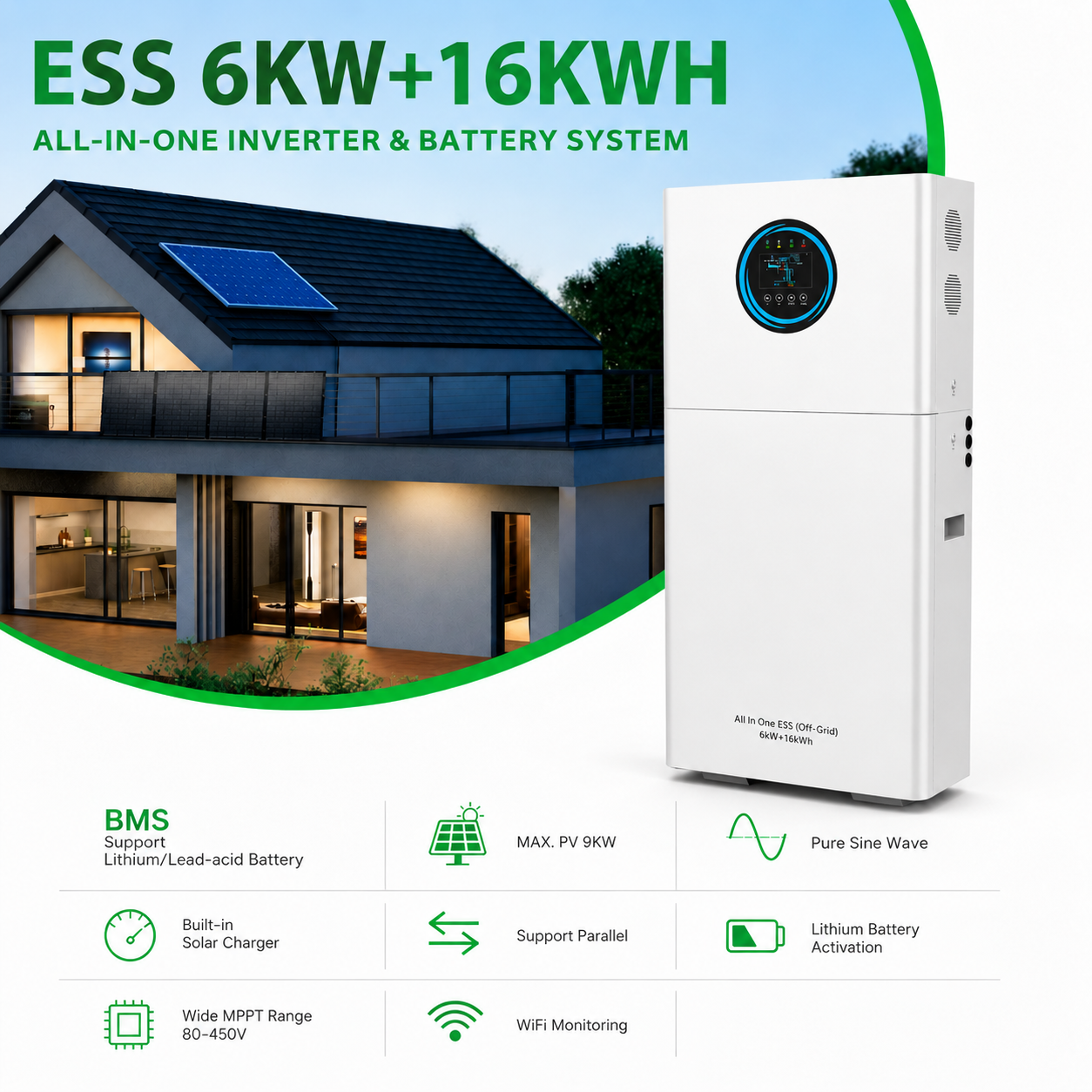

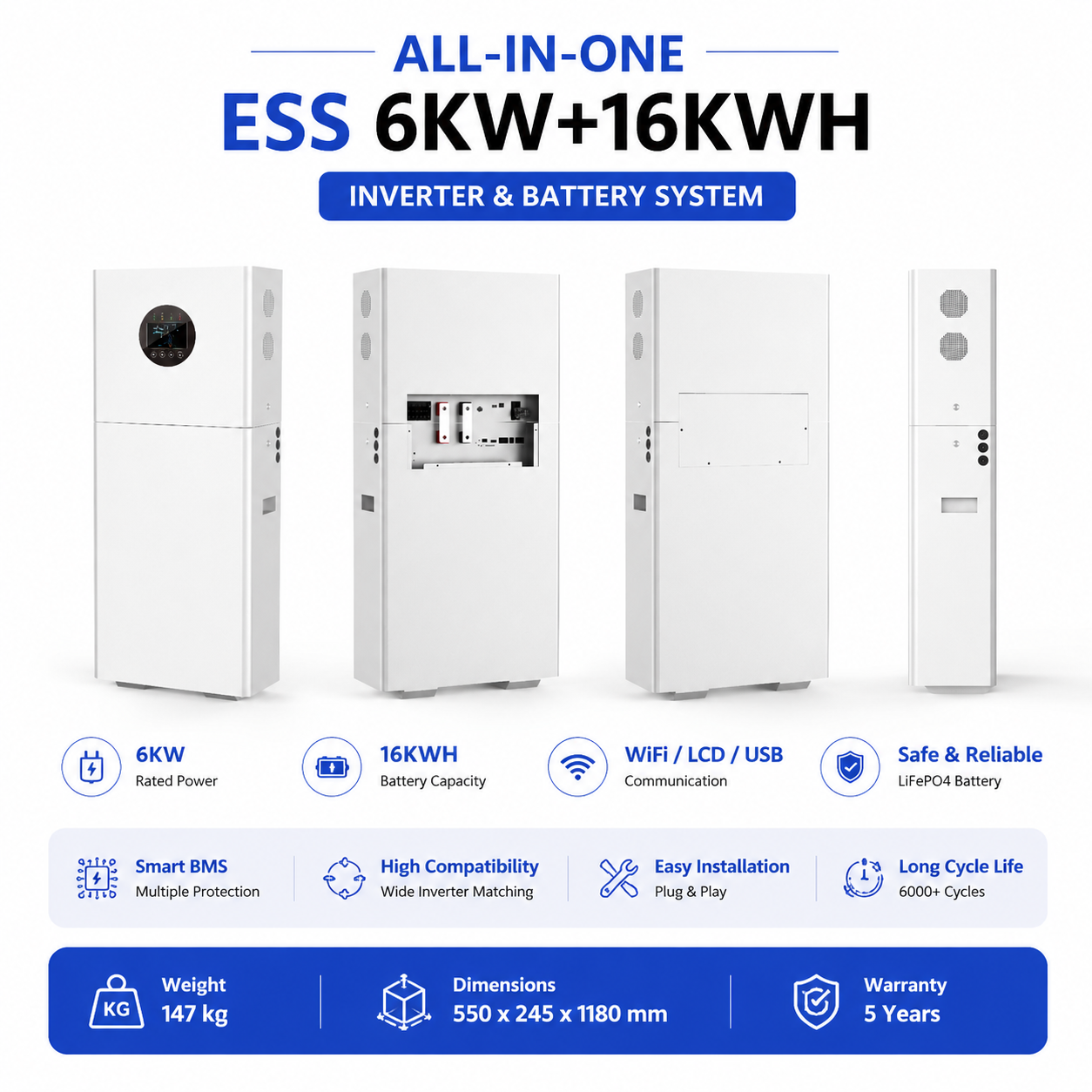

ESS 6KW+16KWH ALL-IN-ONE INVERTER &BATTERY SYSTEM 314AH LiFePO4 Battery EH-26

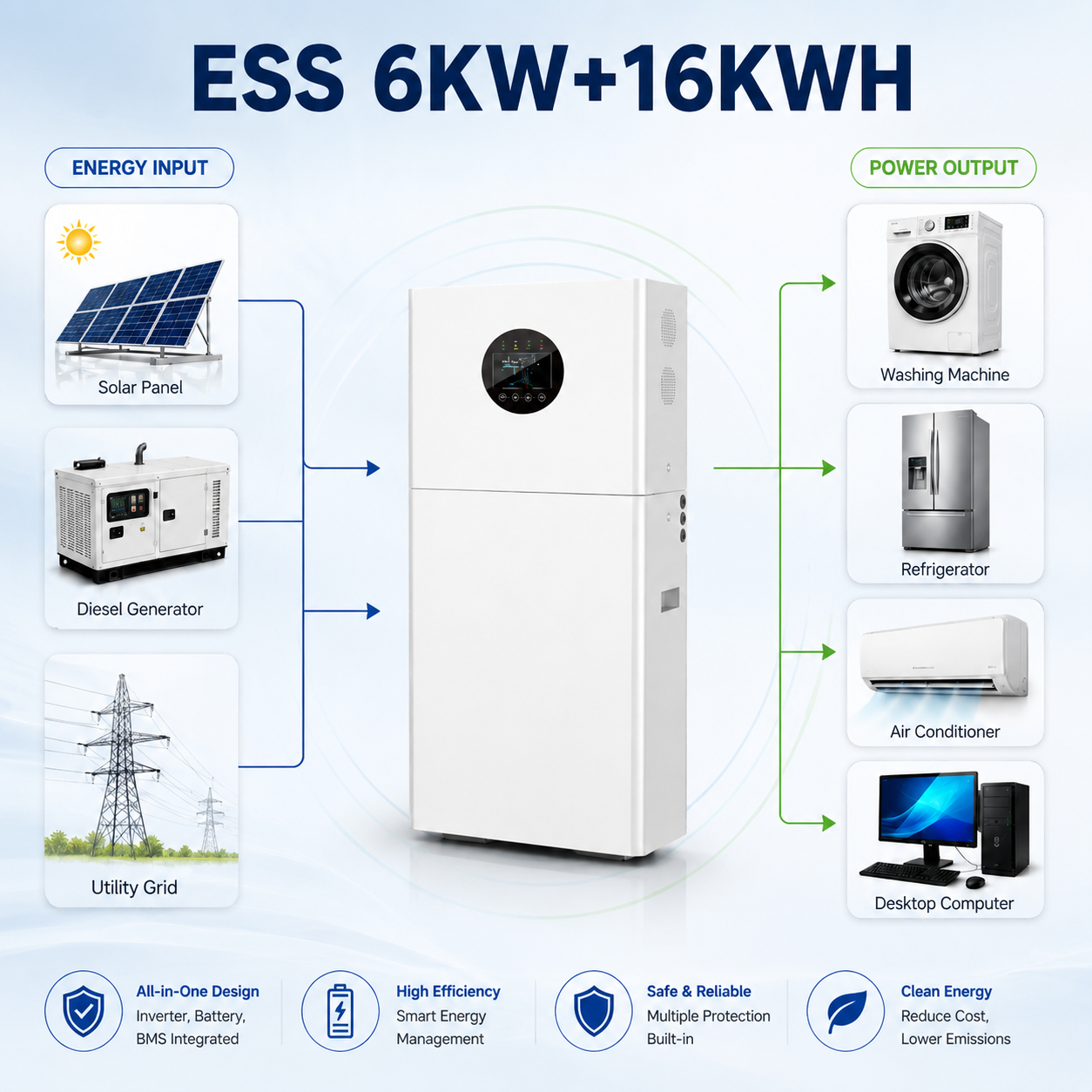

The EH-026 All-in-One ESS integrates a 6kW hybrid inverter and 16kWh battery storage system into a complete energy solution designed for modern solar power applications.
By combining energy conversion, battery storage, and solar charging functions in one integrated system, EH-026 simplifies installation while providing a reliable solution for residential energy storage, backup power, and off-grid applications.
The system supports lithium battery and lead-acid battery compatibility, providing flexible battery options for different customer requirements. With built-in MPPT solar charging technology, the system supports up to 9000W maximum PV input power and a wide 80-450V operating voltage range, allowing flexible photovoltaic system configuration.
EH-026 provides pure sine wave AC output with a 6kW rated power capacity, making it suitable for household appliances and various electrical loads requiring stable power quality.The integrated energy storage system supports WiFi monitoring, allowing users to check system operation status remotely. With parallel connection support, the system can be expanded according to increasing energy demands.
Datasheet
System Specifications
| Parameter | Specification |
|---|---|
| Model | ESS 6KW+16KWH |
| System Type | All-in-One ESS (Off-Grid) |
| Rated Inverter Power | 6kW |
| Battery Capacity | 16kWh |
| Battery Voltage | 51.2VDC |
| Battery Compatibility | Lithium Battery / Lead-Acid Battery |
AC Input
| Parameter | Specification |
|---|---|
| Rated Input Voltage | 208 / 220 / 230 / 240VAC |
| Wiring | L + N + PE |
| Voltage Range | 90~280±3VAC (Normal Mode) |
| UPS Mode Voltage Range | 170~280±3VAC |
| Frequency | 50/60Hz Auto Adaptive |
AC Output
| Parameter | Specification |
|---|---|
| Rated Power | 6kW |
| Output Voltage | 208 / 220 / 230 / 240VAC |
| Frequency | 50/60Hz ±0.1% |
| Wave Form | Pure Sine Wave |
| Max Efficiency (Battery Mode) | 93%@48VDC |
| Overload Capacity | 60s @102%-110% |
| 10s @110%-130% | |
| 3s @130%-150% | |
| 0.2s @>150% |
PV Charger
| Parameter | Specification |
|---|---|
| Solar Charger Type | MPPT |
| Max PV Input Power | 9000W |
| Max PV Input Current | 27A |
| Operating Voltage Range | 80-450VDC |
| Max PV Open Circuit Voltage | 500VDC |
| Max PV Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Charge Current (PV+AC) | 120A |
Related Products
Related Blogs
1. All-in-One ESS Design
Integrated inverter and battery system design provides a complete energy storage solution.
Benefits:
- Simplified installation process
- Reduced system components
- Space-saving energy solution
- Easier system deployment
2. 6kW Hybrid Inverter Output
Provides 6kW rated inverter power for household and energy applications.
Benefits:
- Supports multiple electrical loads
- Suitable for residential power supply
- Stable energy conversion
3. 16kWh Energy Storage Capacity
Large-capacity battery system designed for longer backup operation.
Benefits:
- Extended power availability
- Higher solar energy utilization
- Suitable for daily energy storage
4. 9000W Maximum PV Input
Supports high-power solar photovoltaic integration.
Benefits:
- Better solar energy harvesting
- Suitable for larger PV installations
- Improves renewable energy utilization
5. Wide 80-450V MPPT Range
Flexible photovoltaic operating range for different solar system designs.
Benefits:
- Compatible with various PV configurations
- Improved solar charging flexibility
- Easier system engineering
6. Lithium / Lead-Acid Battery Compatibility
Supports different battery technology choices.
Benefits:
- Flexible battery selection
- Suitable for different customer requirements
- Easier system replacement and integration
7. Pure Sine Wave Output
Provides stable AC power waveform.
Benefits:
- Suitable for sensitive electrical equipment
- Reliable household power supply
- Improved power quality
8. Smart WiFi Monitoring
Supports remote system monitoring.
Benefits:
- Real-time operation monitoring
- Convenient energy management
- Improved user experience
9. Parallel Expansion Support
Allows flexible system expansion.
Benefits:
- Supports increasing energy requirements
- Suitable for larger energy projects
- Flexible system scalability
10. Lithium Battery Activation Function
Supports lithium battery activation management.
Benefits:
- Improved lithium battery compatibility
- Simplified system startup
- Enhanced integration convenience
