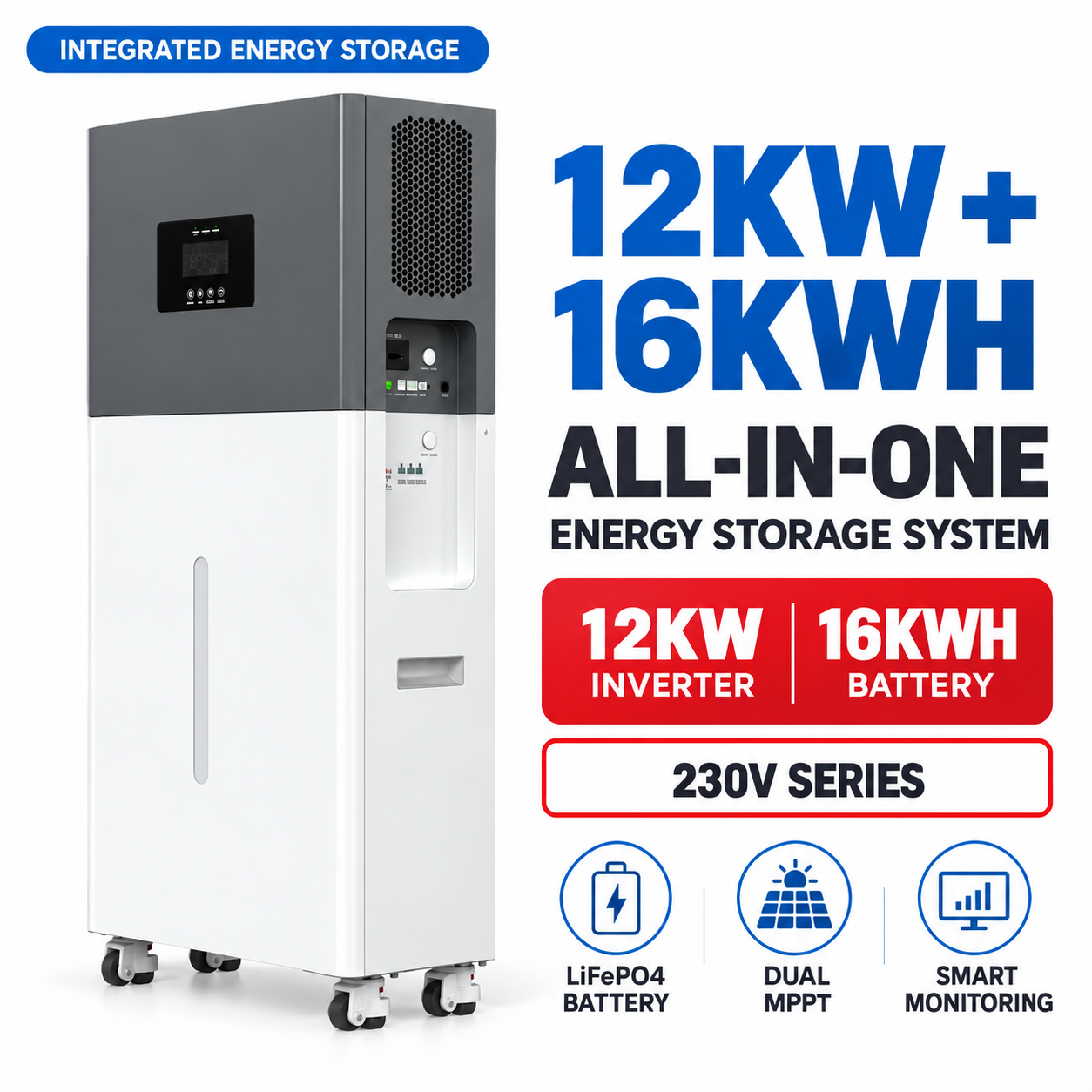

12KW 16KWH All-in-One Energy Storage System EH-63
The EH-63 is an integrated solar energy storage system designed for residential energy storage, backup power, and compatible small commercial applications. Combining a 12kW inverter with a 51.2V lithium iron phosphate battery system, it brings essential power conversion and battery storage components together in one cabinet.
With a rated battery energy of 16.076kWh and a rated AC output power of 12kW, the EH-63 provides an integrated solution for solar energy utilization and backup power system design. Its pure sine wave output and 230VAC rated voltage make it suitable for compatible electrical installations.
Dual MPPT Solar Charging

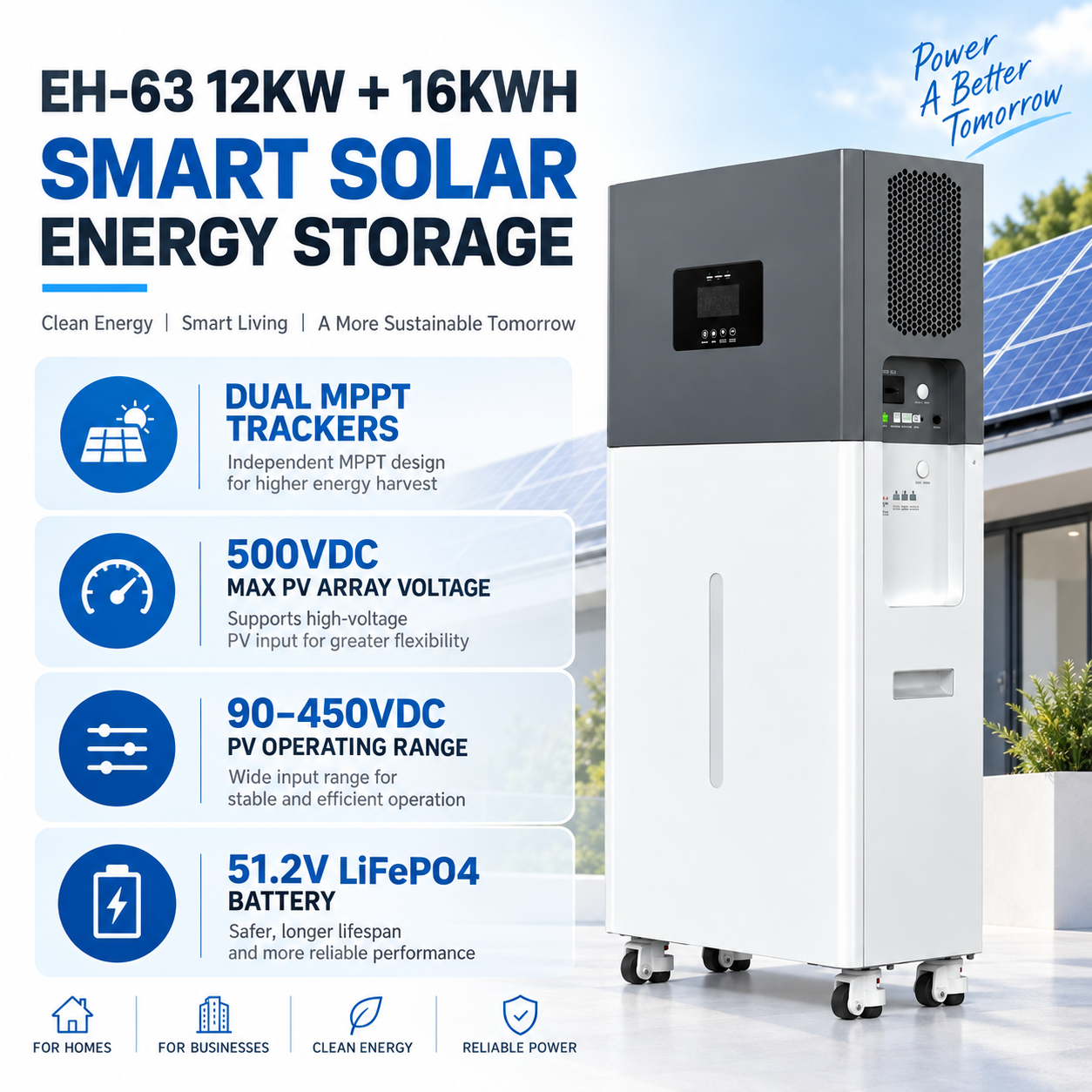

The EH-63 features two MPPT trackers for solar PV integration. The supplied specifications list a maximum PV array voltage of 500VDC and a PV operating voltage range of 90–450VDC. These specifications support flexible PV system design within the inverter’s electrical limits.
Integrated LiFePO4 Battery Storage
The system uses lithium iron phosphate (LiFePO4) battery technology with a nominal battery voltage of 51.2V. The rated battery energy is 16,076Wh. Battery charging, discharging, and protection settings should be configured according to the manufacturer’s technical documentation.
Pure Sine Wave Inverter Output
The inverter provides a rated output power of 12,000W, a power factor of 1, and pure sine wave output. Its specified maximum inverter efficiency is greater than 94%. These features make the EH-63 suitable for compatible loads in residential and small commercial energy storage systems.
Smart Monitoring and Communication
The system supports USB and RS485 communication, WiFi/4G monitoring, and dry-contact control according to the supplied specification. These interfaces help installers and system operators monitor system status and integrate supported control functions.
Flexible Energy System Integration

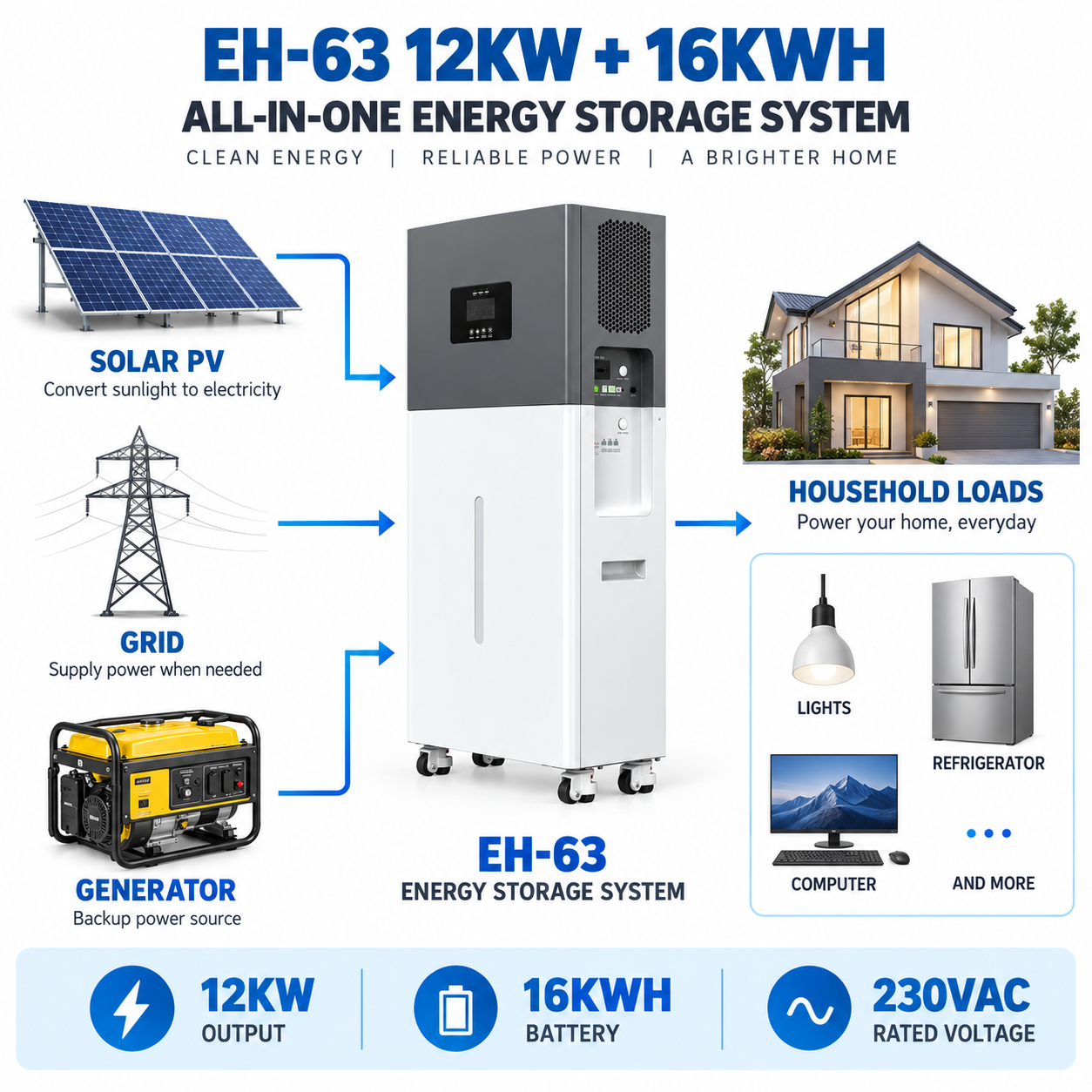

The supplied system connection diagram shows solar PV, grid, and generator inputs connected to the energy storage system, with power supplied to household loads. Actual operating modes and electrical connections depend on the supported configuration and installation requirements.
Designed for Professional Energy Storage Projects
With an integrated cabinet, front display, side ventilation, and caster wheels, the EH-63 is designed for practical equipment placement and system integration. It is suitable for solar installers, energy storage distributors, system integrators, and project contractors seeking a 12kW inverter and 16kWh-class battery solution.
Contact our team for technical documentation, configuration confirmation, and OEM/ODM or project supply discussions.
General Information
| Parameter | Specification |
|---|---|
| Model | EH-63 |
| Series | 230V Series |
| Configuration | 12KW + 16KWH |
| System Type | All-in-One Energy Storage System |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Battery Voltage | 51.2VDC |
| Rated Battery Energy | 16,076Wh |
| Rated Inverter Output | 12,000W |
| Rated AC Voltage | 230VAC |
Battery Specifications
| Parameter | Specification |
|---|---|
| Maximum Charge/Discharge Current | 150A / 150A, confirm current direction and model-specific rating |
| Rated Charge/Discharge Power | 12,000W |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -20°C to +55°C |
| Cycle Life | 6000/8000 cycles at 90% DOD, 25°C, 0.5C; exact condition mapping to be confirmed |
AC Input
| Parameter | Specification |
|---|---|
| Rated Input Voltage | 230VAC ±5% |
| UPS Mode Voltage Range | 170–280VAC |
| APL Mode Voltage Range | 90–280VAC |
| Input Frequency | 50/60Hz, automatic detection |
| Frequency Range at 50Hz | 47–55Hz |
| Frequency Range at 60Hz | 57–65Hz |
| Overload / Short-Circuit Protection | Supported |
| Bypass/Inverter Transfer Time | Less than 5ms |
AC Output / Inverter
| Parameter | Specification |
|---|---|
| Rated Output Power | 12,000W |
| Rated Output Apparent Power | 12,000VA |
| Output Waveform | Pure Sine Wave |
| Power Factor | 1 |
| Rated Output Voltage | 230VAC |
| Output Voltage Regulation | ±5% |
| Output Frequency | 50Hz ±0.3Hz / 60Hz ±0.3Hz |
| Maximum Efficiency | Greater than 94% |
| Surge Power | 24,000VA |
| Motor Load Capacity | 8HP |
| Output Short-Circuit Protection | Circuit Breaker |
| Bypass Circuit Breaker Rating | 63A |
PV Charging
| Parameter | Specification |
|---|---|
| Number of MPPT Trackers | 2 |
| Maximum PV Array Voltage | 500VDC |
| PV Array Voltage Range Listed | 120–500VDC |
| PV Operating Voltage Range | 90–450VDC |
| Battery Voltage Range for Charging | 40–60VDC |
| Maximum PV Input Power | 9000W × 2, as stated in the datasheet |
| Maximum PV Input Current | 27A + 27A |
| Charging Short-Circuit Protection | Fuse |
AC Charging
| Parameter | Specification |
|---|---|
| Supported Battery Types | Lead-Acid or Lithium Battery, according to the specification |
| Maximum AC Charging Current | 150A |
| Charging Voltage Range | 40–60VDC |
| Short-Circuit Protection | Circuit Breaker and Fuse |
| Circuit Breaker Rating | 63A |
Combined Charging
| Parameter | Specification |
|---|---|
| Maximum Combined Charging Current (AC + PV) | 0–150A |
General Data
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C; derating at 45°C |
| Storage Temperature | -25°C to +60°C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Rating | IP21 |
| Cooling | Forced-air cooling, variable fan speed |
| Communication Interfaces | USB / RS485 |
| Monitoring / Control | WiFi/4G / Dry Contact Control |

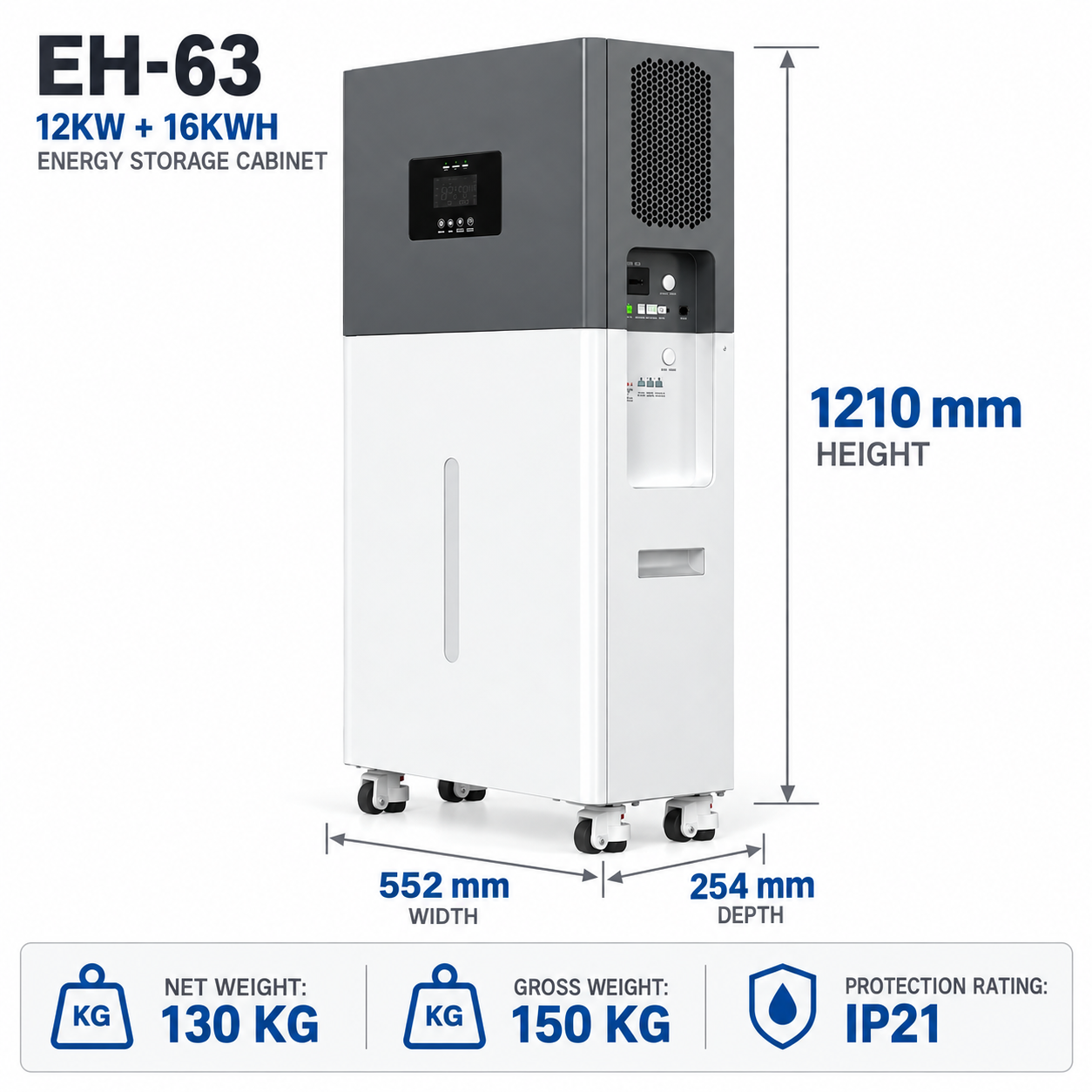

| Product Dimensions (L × W × H) | 552 × 254 × 1210mm |
| Package Dimensions (L × W × H) | 635 × 353 × 1370mm |
| Net Weight | 130kg, according to product image |
| Gross Weight | 150kg, according to specification sheet |
Technical verification before publication: The datasheet appears to list a PV input power of 9000W × 2 alongside a 12kW rated inverter. Confirm the permitted PV array capacity and whether this notation represents two independent inputs. Also confirm the charge/discharge current ratings, the cycle-life conditions, and the net/gross weight values before presenting them as final contractual specifications.
