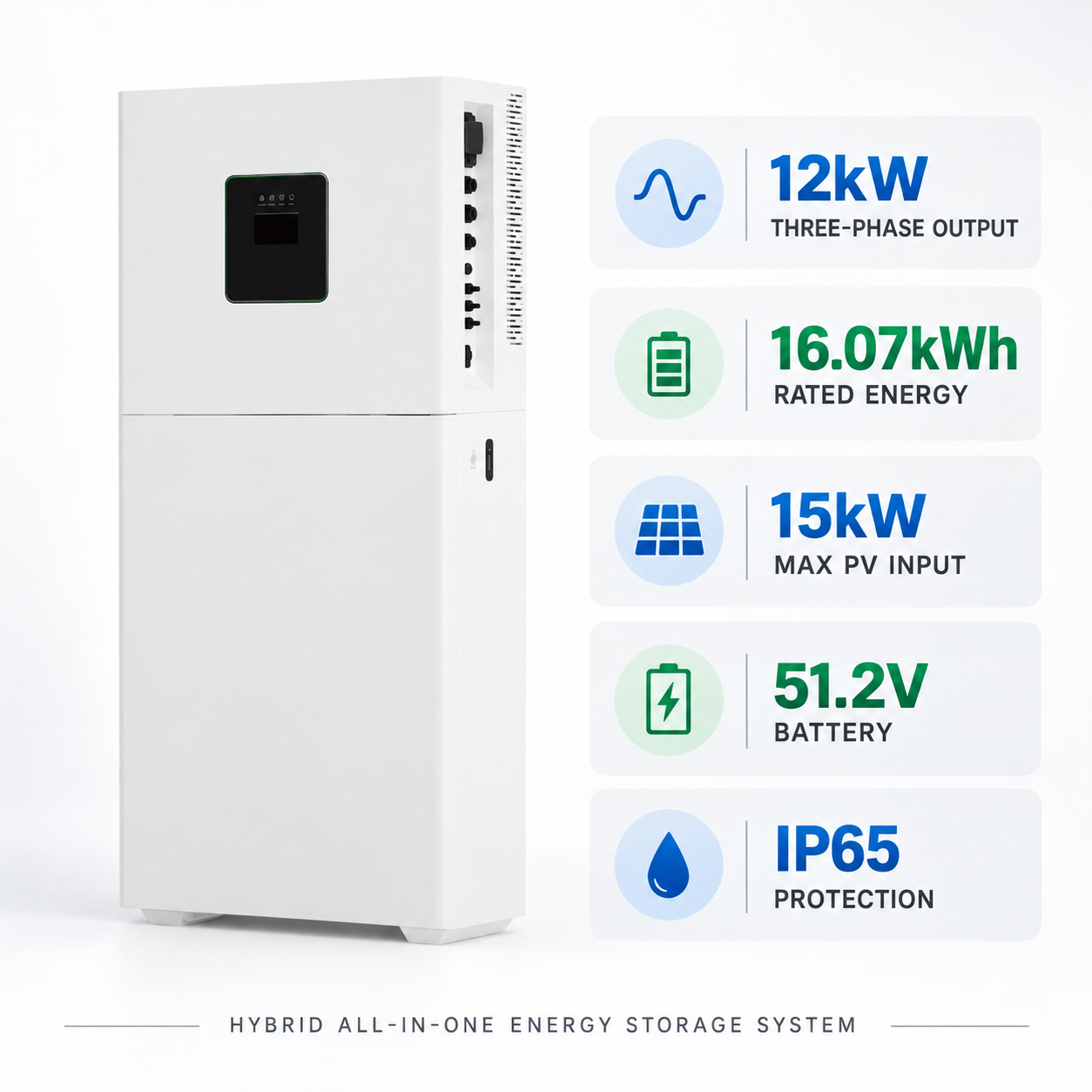

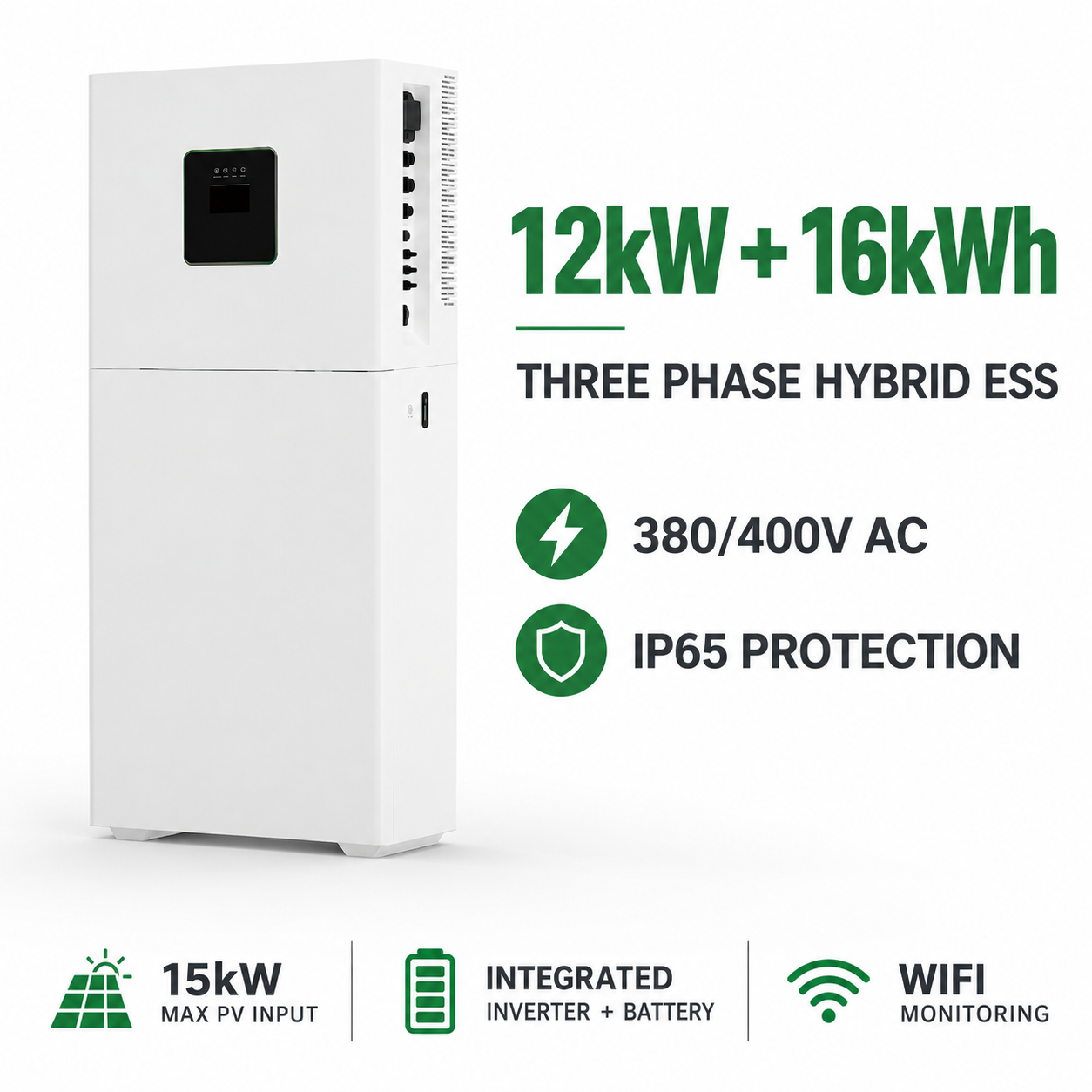

12kW 16kWh ALL IN ONE Three Phase Hybrid Energy Storage System EH-064
The EH-064 12kW 16kWh Three Phase Hybrid All-in-One Energy Storage System is designed for residential, commercial and light industrial applications that require reliable solar energy management and integrated battery storage. Combining an inverter, battery and battery management system in one cabinet, it provides a streamlined solution for solar power generation, energy storage and AC power supply.
Designed for three-phase 380/400V systems, the EH-064 supports a rated AC output power of 12kW and a maximum apparent power of 13.2kVA. Its built-in solar charging capability supports a maximum PV input capacity of 15kW, with a maximum PV open-circuit voltage of 1000V and an MPPT operating range of 200–800V.
The integrated 51.2V battery system provides a rated energy capacity of 16.07kWh and usable energy of 14.46kWh at 90% depth of discharge. With an IP65 protection rating, the system is suitable for installations that require enhanced protection against dust and water ingress, subject to proper installation and the manufacturer’s instructions.
The EH-064 features an LCD display, USB communication, WiFi monitoring and optional 4G connectivity. It also supports generator input and standalone AC load output, offering flexible energy management options for different installation scenarios.
This all-in-one design helps simplify system integration, reduce the need for separate inverter and battery cabinets, and make installation and daily operation more convenient for energy storage installers, distributors and project developers.
Basic Information
-
Product Model: EH-064
-
Datasheet Model: ESS LV 12kW + 16kWh
-
Product Type: Hybrid All-in-One Energy Storage System
-
System Configuration: Integrated inverter, battery and BMS
-
Phase Type: Three-phase
-
Protection Rating: IP65
PV Input
-
Maximum PV Input Capacity: 15kW
-
Maximum PV Input Current: 36A + 18A
-
Maximum PV Short-Circuit Current: 45A + 22.5A
-
Maximum PV Open-Circuit Voltage: 1000VDC
-
MPPT Voltage Range: 200–800VDC
-
MPPT Full-Load Voltage Range: 350–800VDC
AC Input / Output
-
Rated Input/Output Active Power: 12kW
-
Maximum Input/Output Apparent Power: 13.2kVA
-
AC Voltage: 380/400V (3W + N + PE)
-
Rated AC Input/Output Current: 21A / 20A
-
Grid Frequency: 50/60Hz
-
Off-Grid Power Factor: 0.8 leading to 0.8 lagging
-
Battery Mode Overload Capacity: More than 200% for 10 seconds
-
Output Current Harmonic Distortion: Less than 3% at nominal power
Generator Input
-
Rated Active Power: 12kW
-
Maximum Apparent Power: 13.2kVA
-
Voltage: 380/400V (3W + N + PE)
-
Rated AC Input Current: 20A
-
Frequency: 50/60Hz
Standalone AC Load Output
-
Rated Active Power: 12kW
-
Maximum Apparent Power: 13.2kVA
-
Output Voltage: 380/400V (3W + N + PE)
-
Rated AC Output Current: 20A
-
Frequency: 50/60Hz
-
Waveform: Pure Sine Wave
Battery
-
Nominal Battery Voltage: 51.2VDC
-
Rated Energy: 16.07kWh (0.5C, 25°C)
-
Usable Energy: 14.46kWh at 90% DOD
-
Maximum AC Charge Current: 250A
-
Maximum PV Charge Current: 250A
-
Maximum Combined PV + AC Charge Current: 250A
-
Maximum Discharge Current: 250A
-
Operating Voltage Range: 43.2–58.4VDC
Display, Communication and Monitoring
-
Display: LCD
-
Communication Interface: USB
-
Monitoring: WiFi
-
Optional Connectivity: 4G
Environmental Specifications
-
Ingress Protection: IP65
-
Charging Temperature: 0°C to +55°C
-
Discharging Temperature: −20°C to +55°C
-
Relative Humidity: 5%–95%, non-condensing
-
Maximum Operating Altitude: 4000m, with derating above 2000m

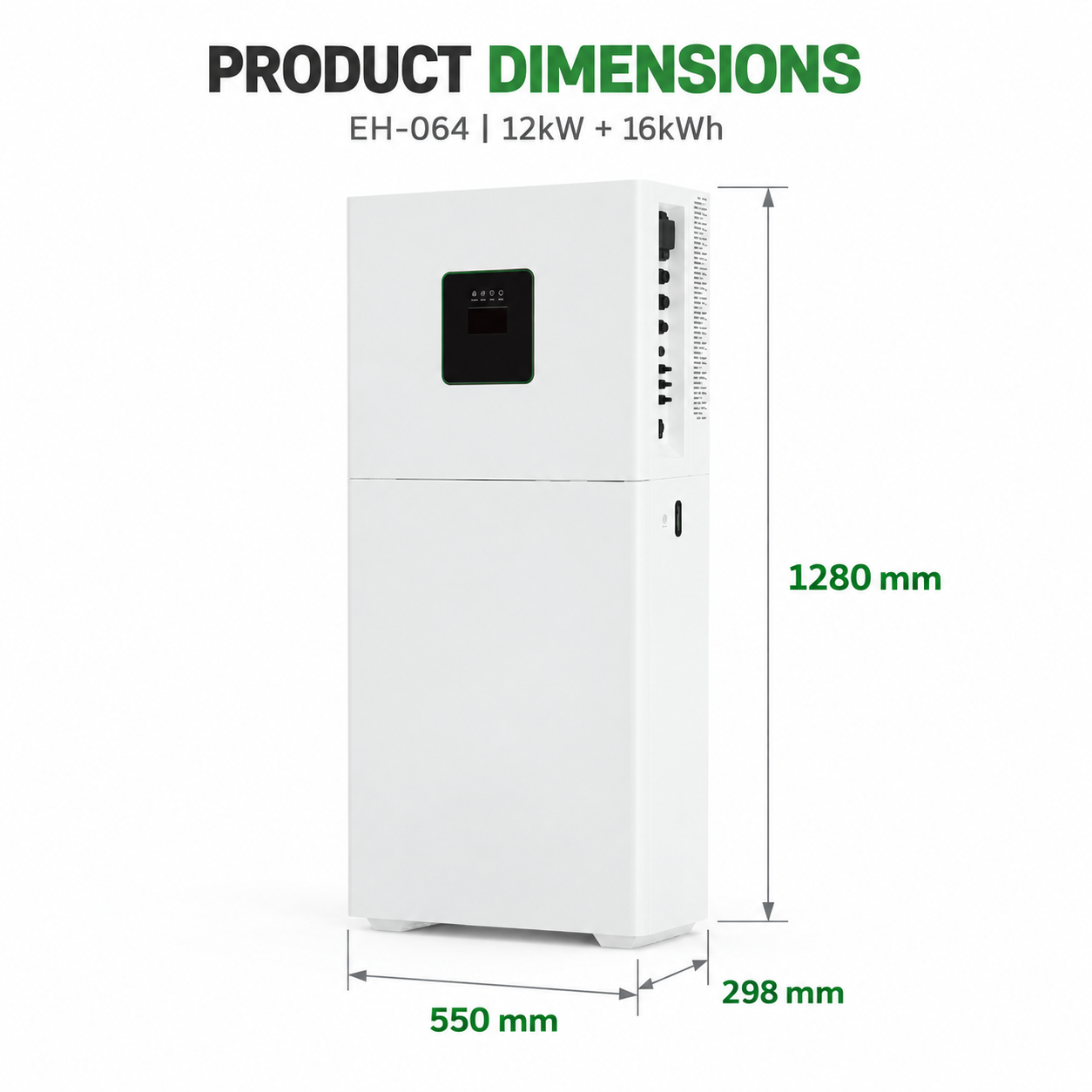

Dimensions and Weight
-
Product Dimensions (L × W × H): 550 × 298 × 1280mm
-
Package Dimensions (L × W × H): 630 × 480 × 1360mm
-
Net Weight: 175kg
-
Gross Weight: 197kg
Note: The above dimensions and weights are for the 16kWh configuration shown in the EH-64.pdf datasheet. Confirm the final production configuration before publishing any customized version. Certification details and warranty terms should be added only after confirmation.
Related Products
Related Blogs
1. Integrated Inverter and Battery Design
Combines the inverter, battery and BMS in one cabinet, helping simplify system integration and reduce installation complexity.
2. 12kW Three-Phase AC Output
Provides 12kW rated AC output for compatible 380/400V three-phase applications, including residential and small commercial energy systems.
3. 16kWh-Class Battery Storage
Features 16.07kWh rated battery energy and 14.46kWh usable energy at 90% DOD to support solar energy storage and power management.
4. High-Capacity Solar Input
Supports up to 15kW PV input capacity, with a 1000V maximum PV open-circuit voltage and a 200–800V MPPT operating range.
5. IP65 Protection
The IP65-rated enclosure provides protection against dust ingress and water jets when installed and used according to the manufacturer’s requirements.
6. Flexible Charging Options
Supports AC charging, PV charging and combined PV-plus-AC charging. The maximum current values are specified in the technical datasheet.
7. Generator Compatibility
Includes generator input specifications, allowing the system to be incorporated into compatible energy setups that use a generator as an additional power source.
8. Monitoring and Communication
An LCD display and USB communication are provided, with WiFi monitoring and optional 4G connectivity for remote system monitoring.
9. Standalone AC Load Output
Supports standalone AC load output, giving system designers more flexibility when planning backup and off-grid power applications.

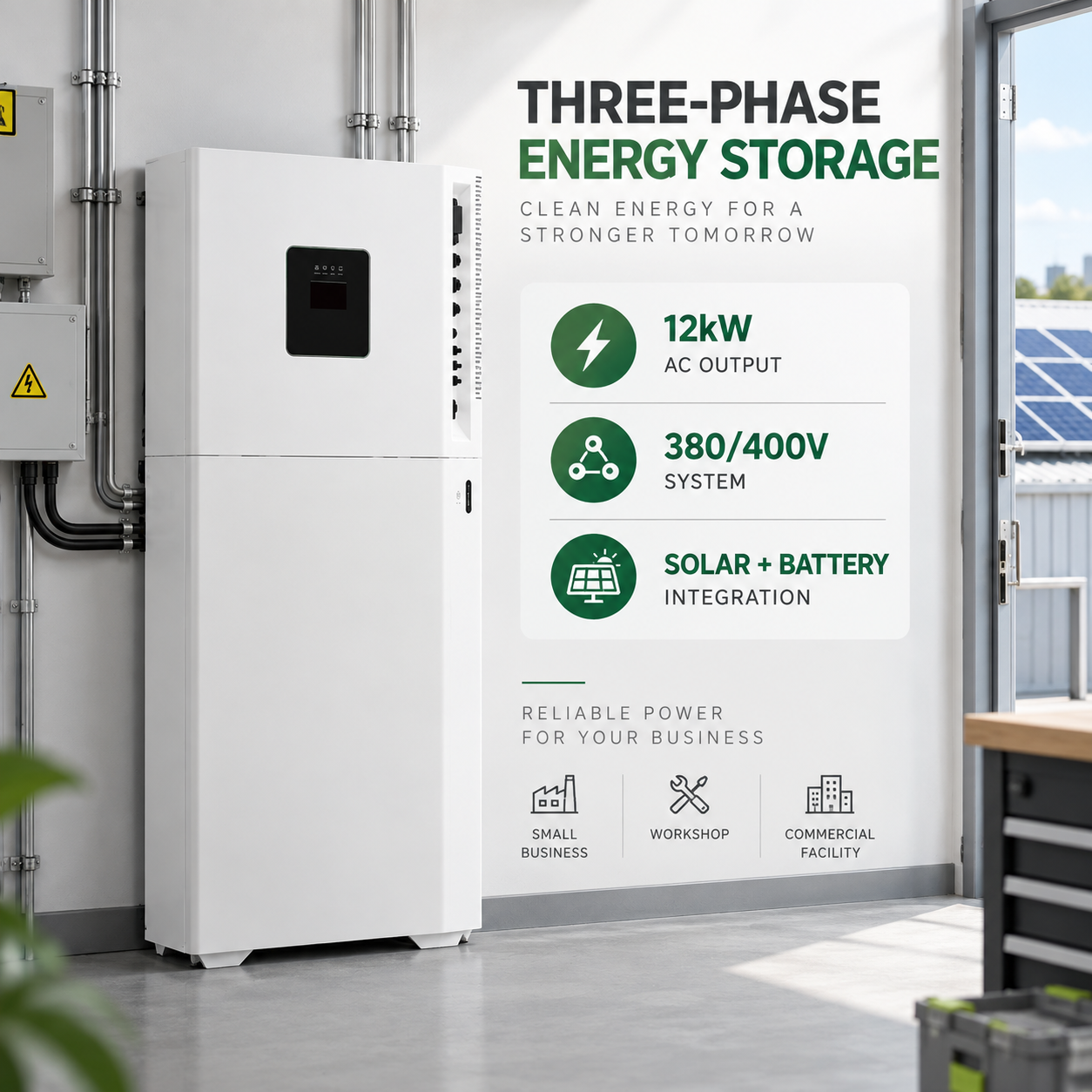

10. Designed for Multiple Installation Scenarios
Suitable for appropriately designed three-phase solar and storage projects in residential, commercial and light industrial environments. Final suitability depends on the load profile, local electrical requirements and installation conditions.
